Universal Indicator Mount

The patented design of the Universal Indicator Mount was created to clamp on to any surface (thickness of surface must be between 1.5" to 6" and is compatible with a ∅ 3/8" indicator shank) in order to allow for easy clamping onto any surface, fixed perpendicular measuring for indicators (not included), and reliable, consistent readings. The clamp is easy to move onto different surfaces depending on any requirements for the job. Originally designed for granite surface blocks, the Universal Indicator Mount also works with stepped edges, solid edges, and other material blocks. The Universal Indicator Mount allows for a larger and more accurate measuring surface, and keeps both the Indicator and additional Indicator tips out of the way for a convenient workflow.

Once a job is set up, the Indicator will always be fixed in the same reliable position by using the Universal Indicator Mount. This allows for added versatility by allowing the Indicator to remain where it needs to be throughout the entire workflow. By removing the need to remount or reposition the Indicator throughout a job, your team can achieve greater workflow efficiency and consistent readings.

Assembly & Installation Instructions

Fits onto a 1.5” - 6” thick surface/Compatible with a ∅ 3/8" indicator shank

To download printable instructions, please click here

Step 1

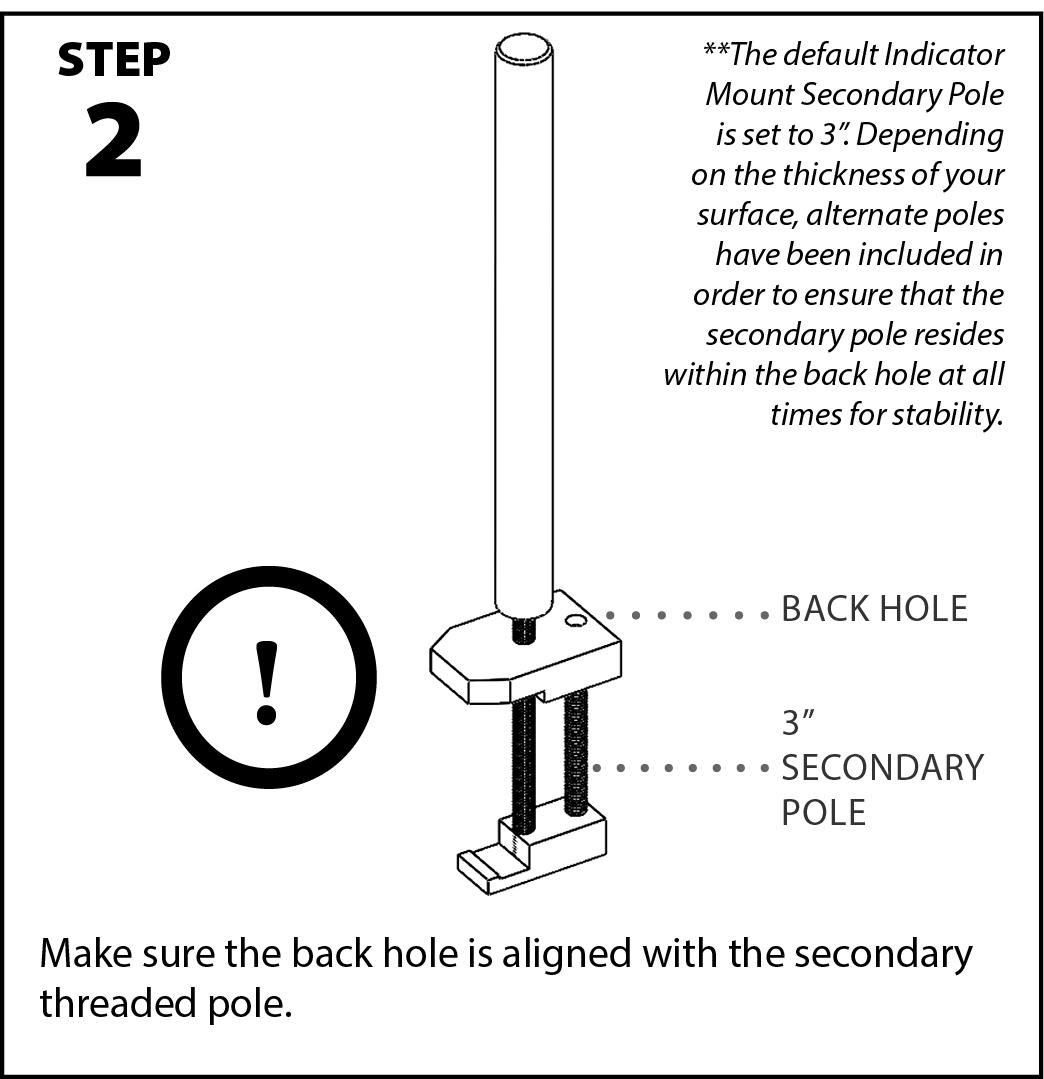

Step 2

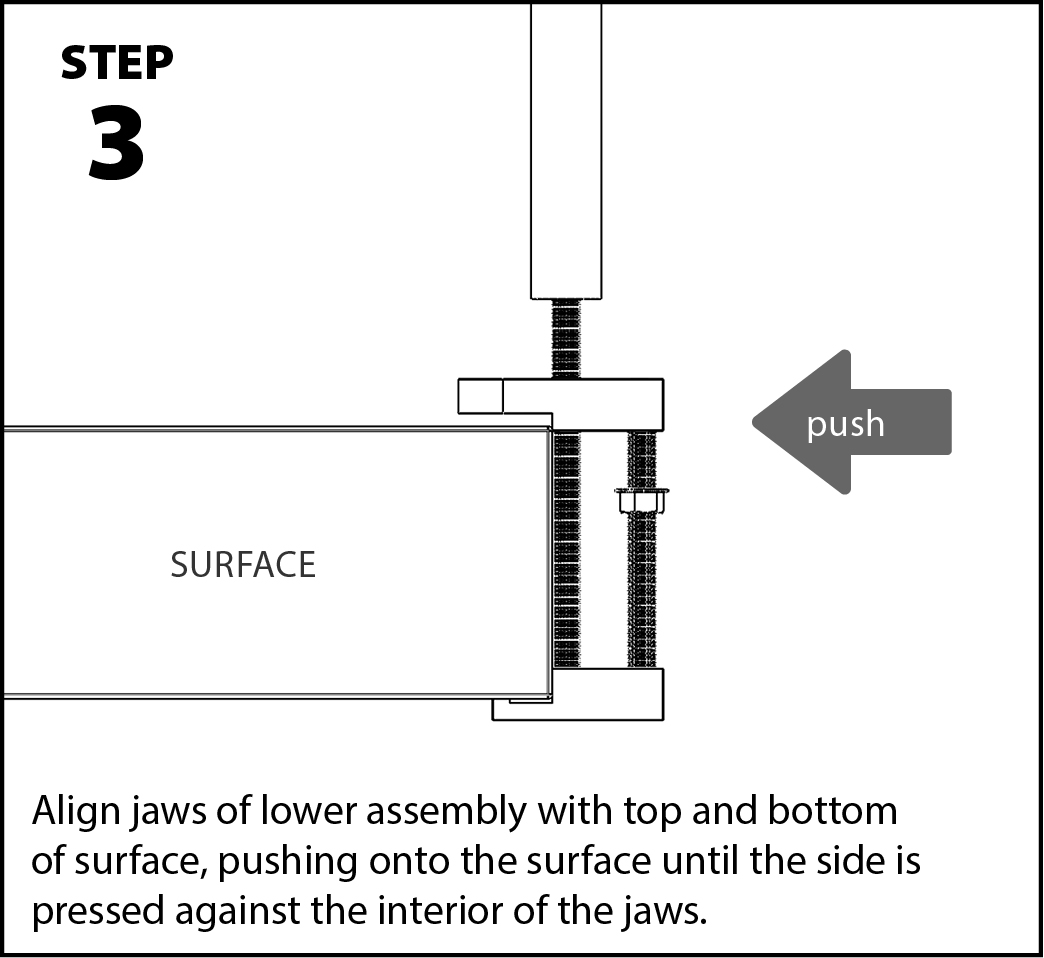

Step 3

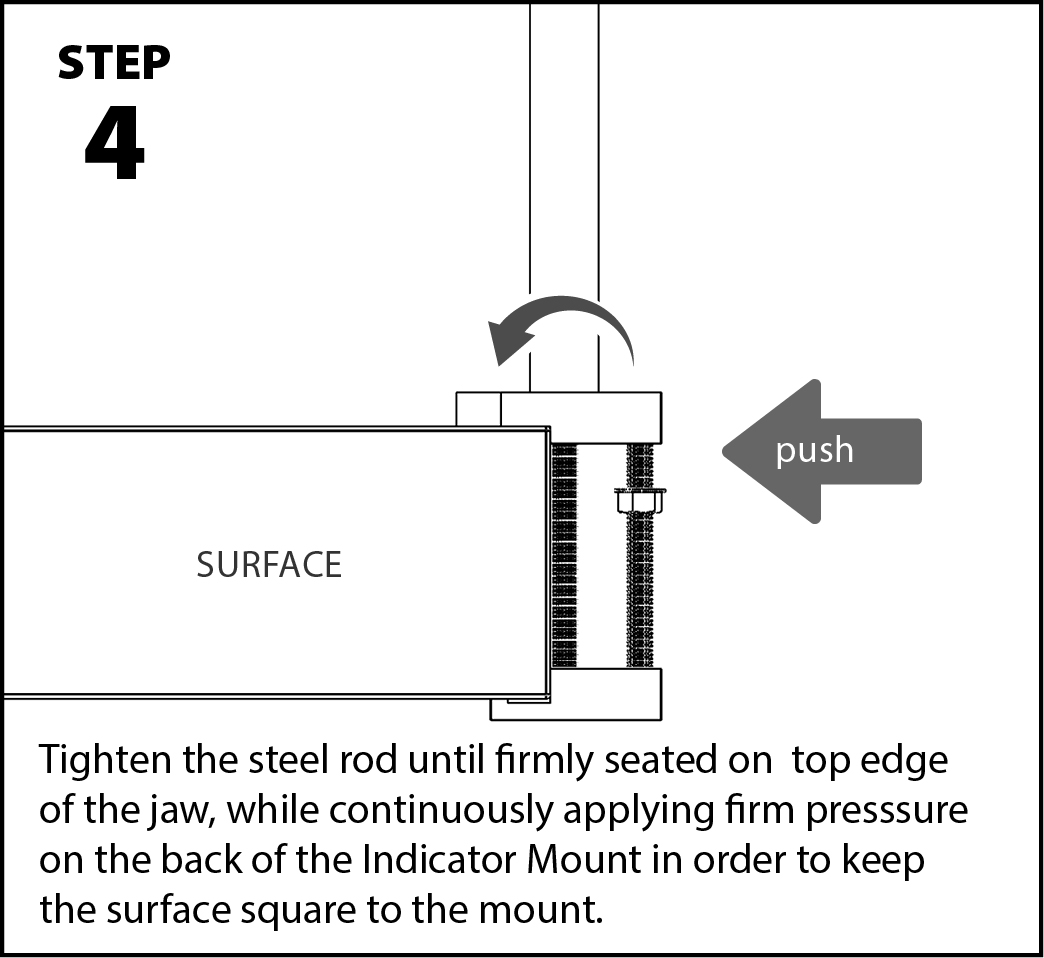

Step 4

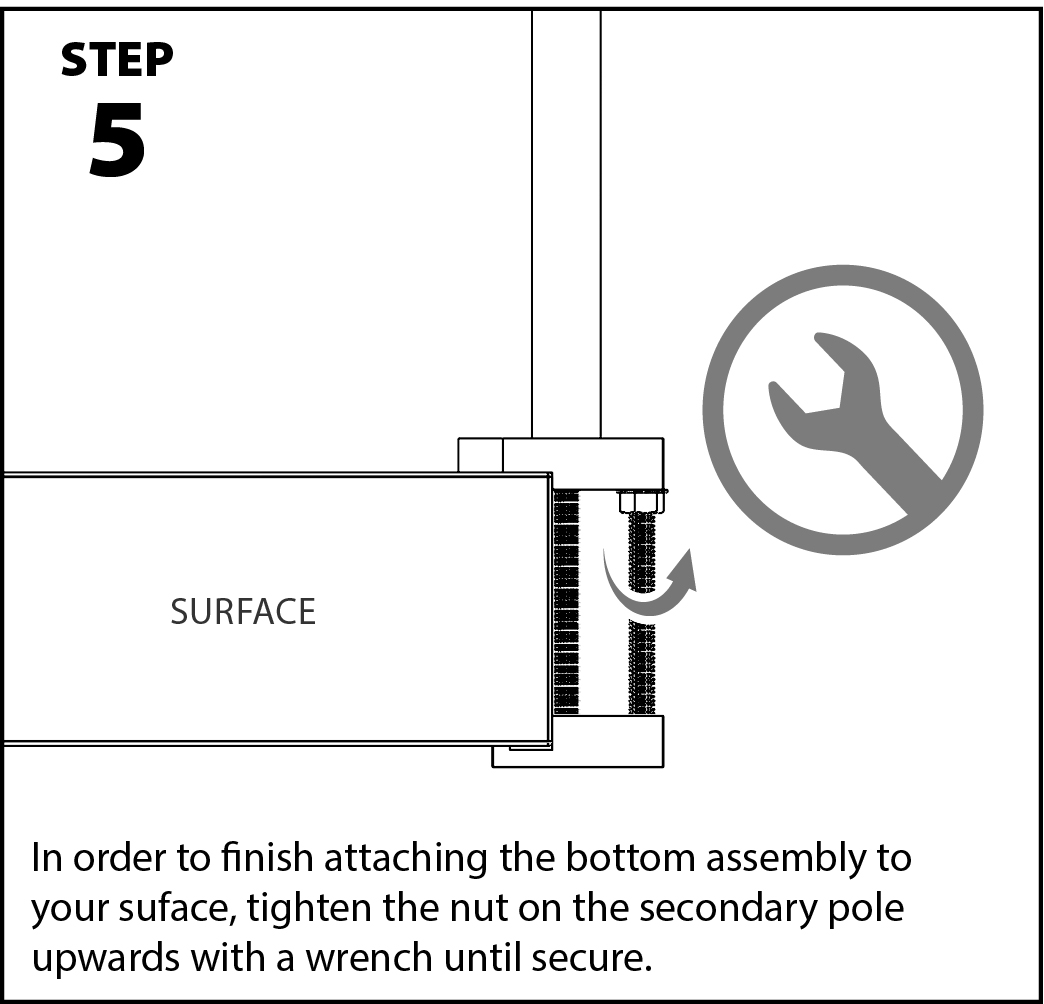

Step 5

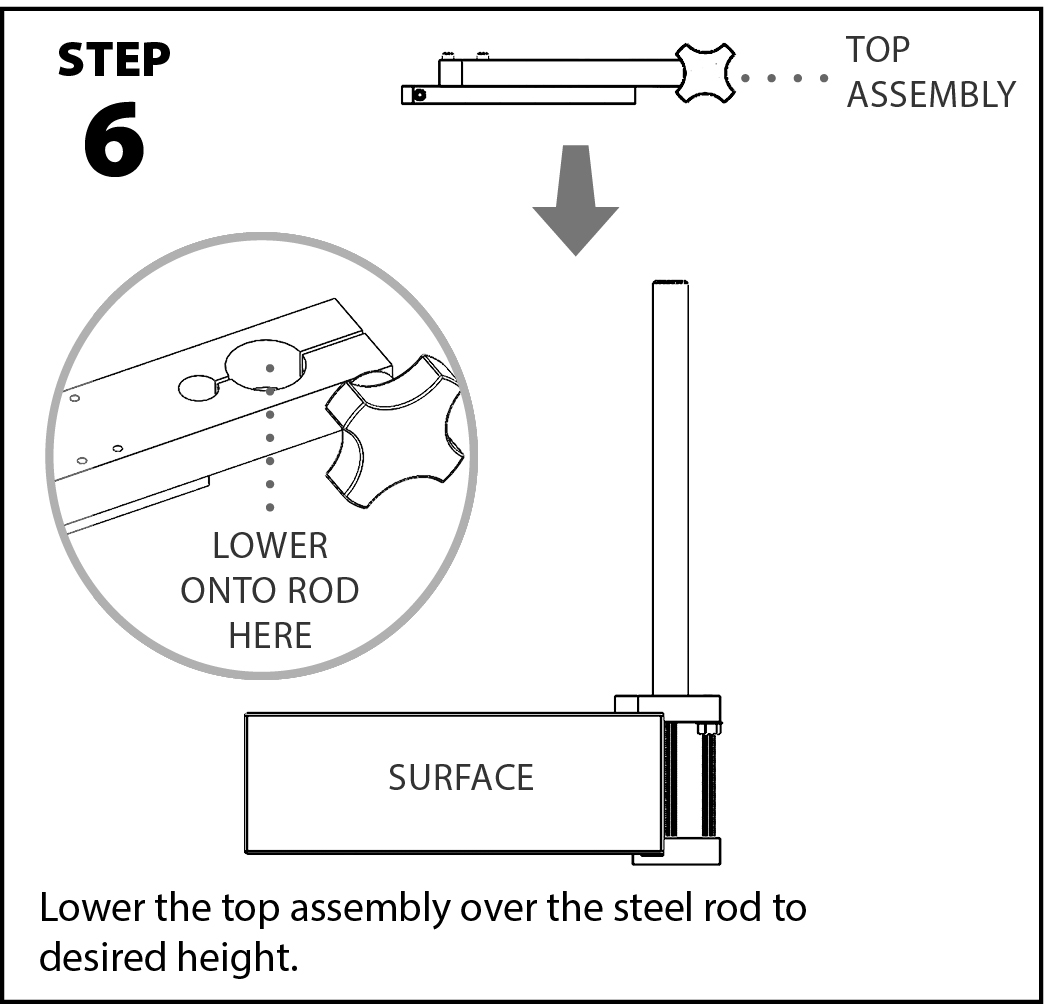

Step 6

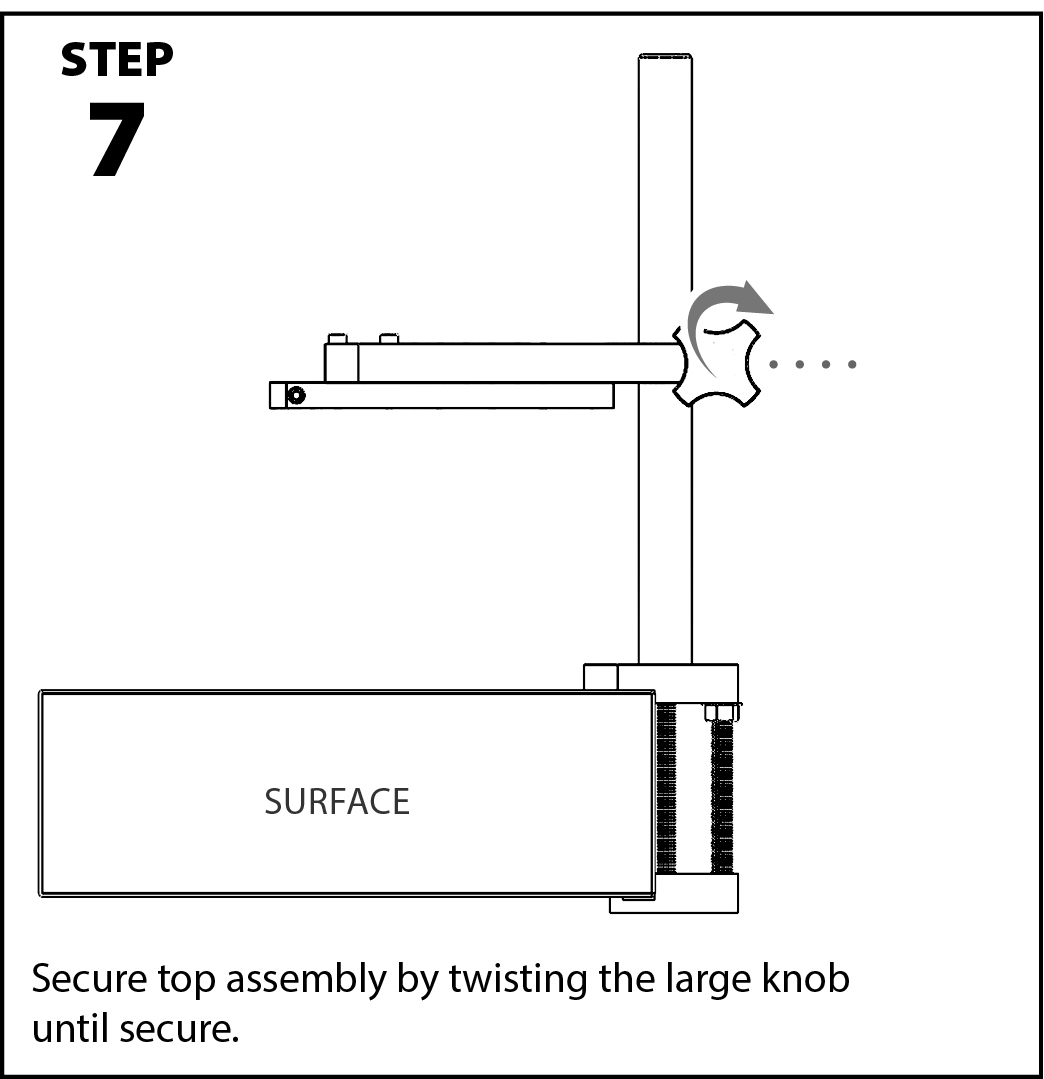

Step 7

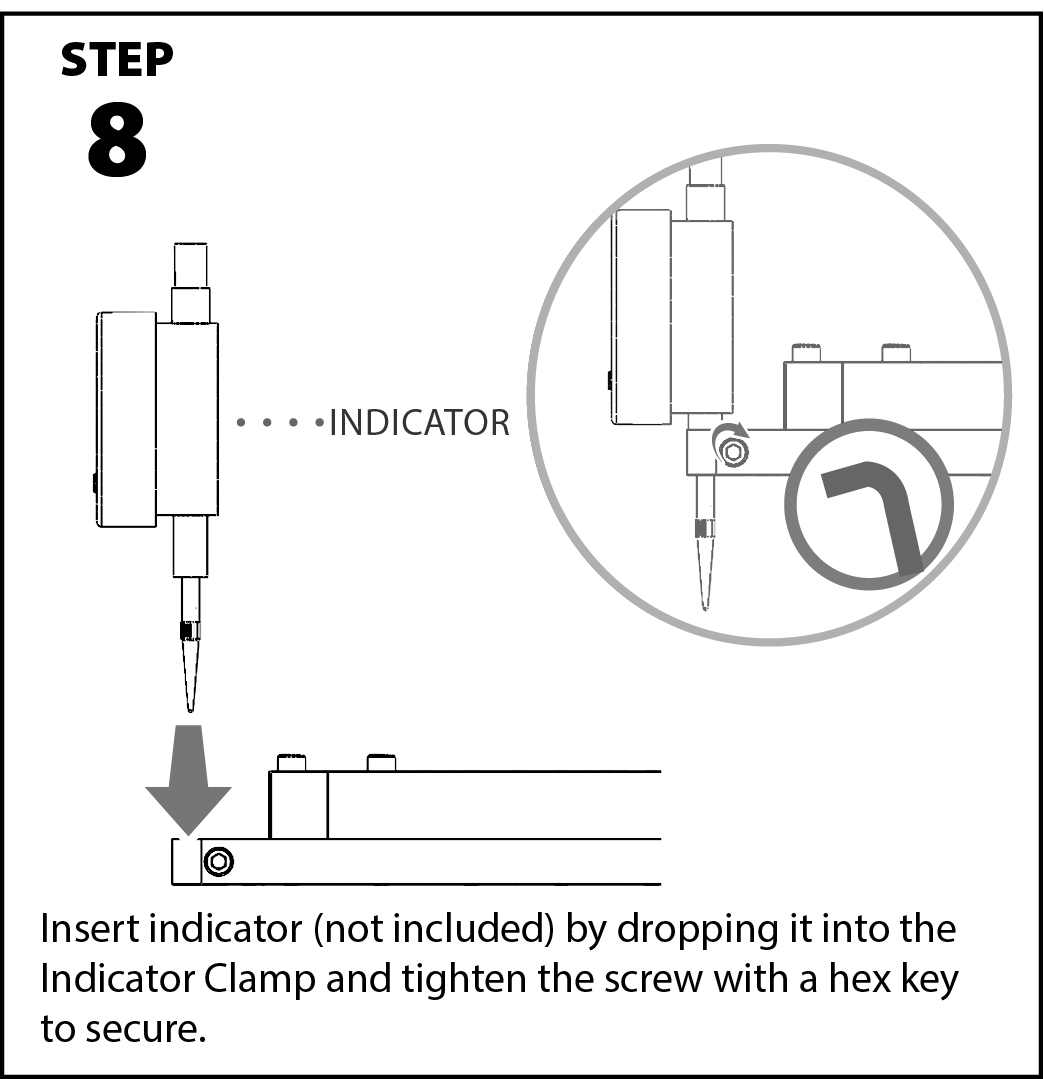

Step 8

Adjusting the Upper Assembly

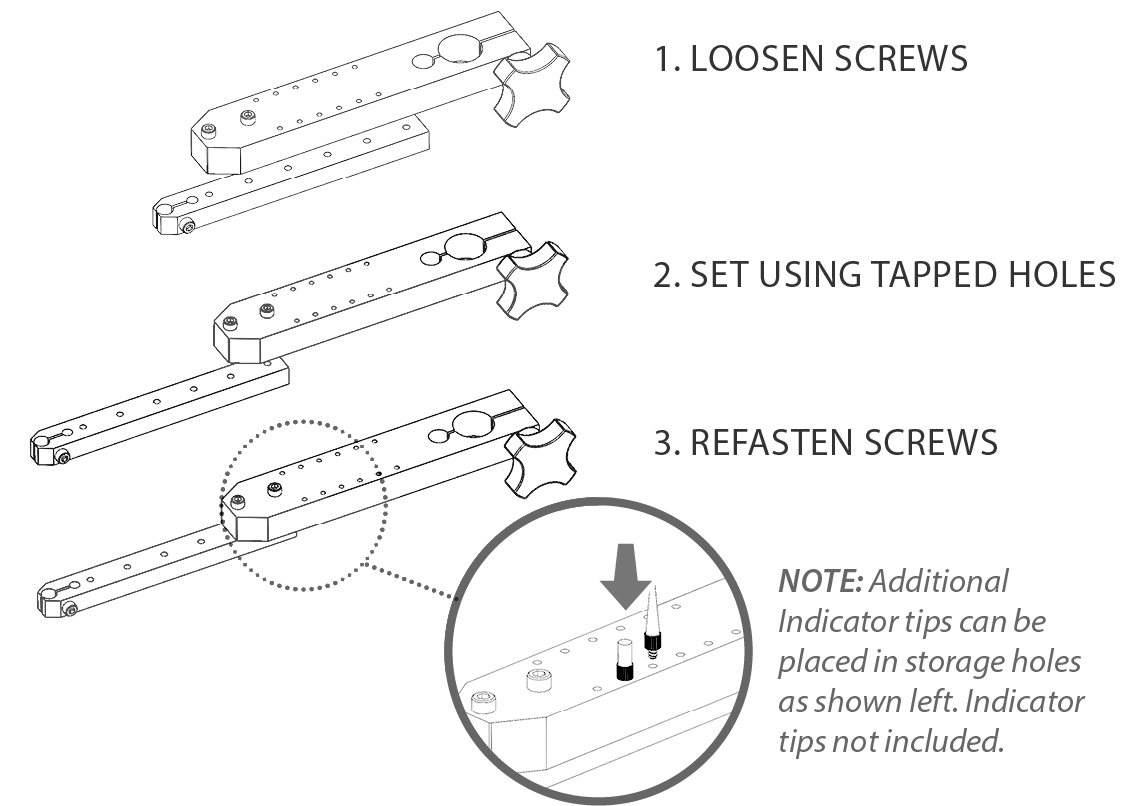

To adjust the upper assembly, loosen screws and set to desired position using the tapped holes in the lower bar, and refasten the screws. Assembly can be reversed for left- or right-handed use.

Step 7a

Completed View

Step 8a
